Lesson 30 - Post-processing and render graph
Post-processing Effects
Based on Shaders, common image processing effects can be achieved, such as Gaussian blur, Perlin noise, Glitch, and of course, the recently popular "liquid glass":
For more effects, see:
In implementation, Pixi.js filters calculate the application area based on the object's bounding box, render the object onto a temporary render texture, and then apply shader effects to that texture.
RenderTarget
// src/filters/FilterSystem.ts
const quadGeometry = new Geometry({
attributes: {
aPosition: {
buffer: new Float32Array([0, 0, 1, 0, 1, 1, 0, 1]),
format: 'float32x2',
stride: 2 * 4,
offset: 0,
},
},
indexBuffer: new Uint32Array([0, 1, 2, 0, 2, 3]),
});Sample
Next, we need to sample the area where the target shape is located from the texture of the entire canvas:
void main() {
v_Uv = a_Position * (u_OutputFrame.zw / u_InputSize.xy) + u_OutputFrame.xy / u_InputSize.xy;
gl_Position = vec4((a_Position * 2.0 - 1.0) * u_OutputTexture.xy / u_OutputFrame.zw * u_OutputTexture.z, 0.0, 1.0);
}Big triangle
Here we can use a full-screen triangle, which reduces one vertex compared to a Quad:
this.#bigTriangleVertexBuffer = this.device.createBuffer({
viewOrSize: new Float32Array([1, 3, -3, -1, 1, -1]),
usage: BufferUsage.VERTEX,
hint: BufferFrequencyHint.DYNAMIC,
});The vertex shader is very simple; it only needs to correctly map the v_Uv texture coordinates:
void main() {
v_Uv = 0.5 * (a_Position + 1.0);
gl_Position = vec4(a_Position, 0.0, 1.0);
#ifdef VIEWPORT_ORIGIN_TL
v_Uv.y = 1.0 - v_Uv.y;
#endif
}Brightness
We can use the CSS filter syntax, for example filter: brightness(0.4);
uniform sampler2D u_Texture;
in vec2 v_Uv;
layout(std140) uniform PostProcessingUniforms {
float u_Brightness;
};
out vec4 outputColor;
void main() {
outputColor = texture(SAMPLER_2D(u_Texture), v_Uv);
outputColor.rgb *= u_Brightness;
}Render graph

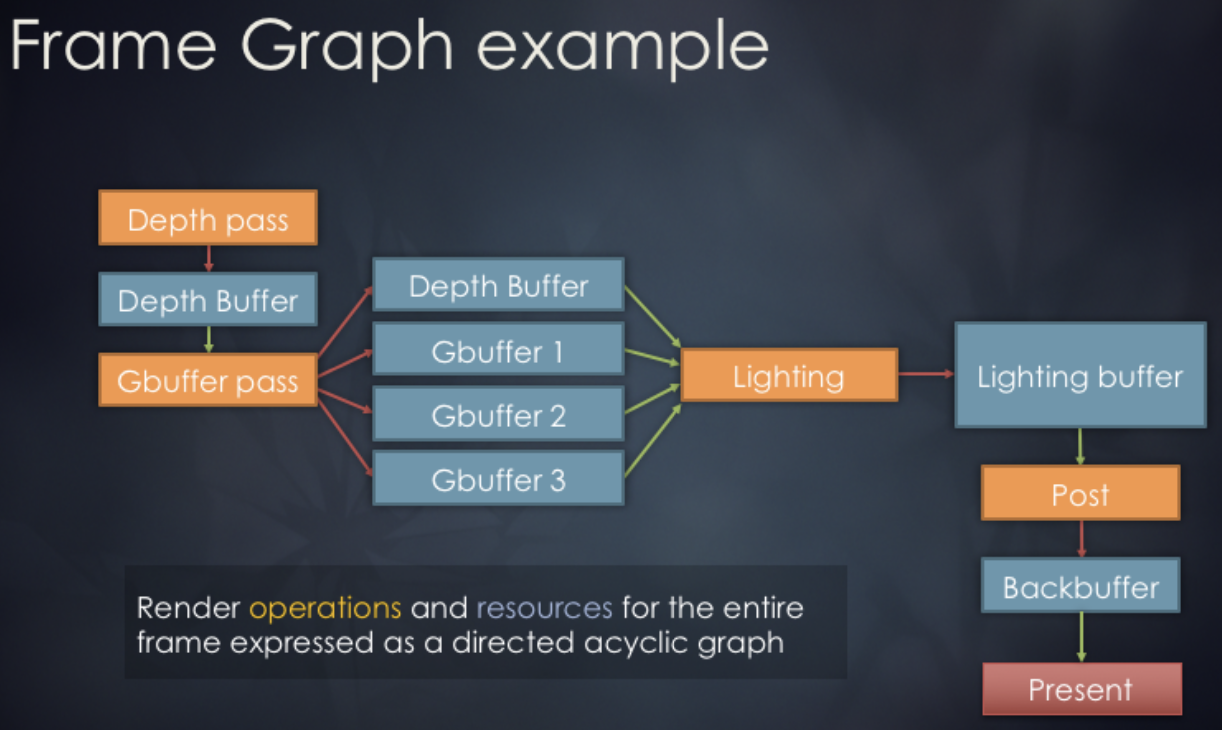

Render Graph（有时称为 FrameGraph）是一种将渲染过程抽象为有向无环图（DAG）的现代渲染架构。在这一架构下，每个渲染 Pass 以及它们使用的资源都被视为图节点与边，通过图结构自动管理资源状态转换、同步和生命周期。
Implementation
// @see https://docs.rs/bevy/latest/bevy/render/render_graph/struct.RenderGraph.html
let mut graph = RenderGraph::default();
graph.add_node(Labels::A, MyNode);
graph.add_node(Labels::B, MyNode);
graph.add_node_edge(Labels::B, Labels::A);
